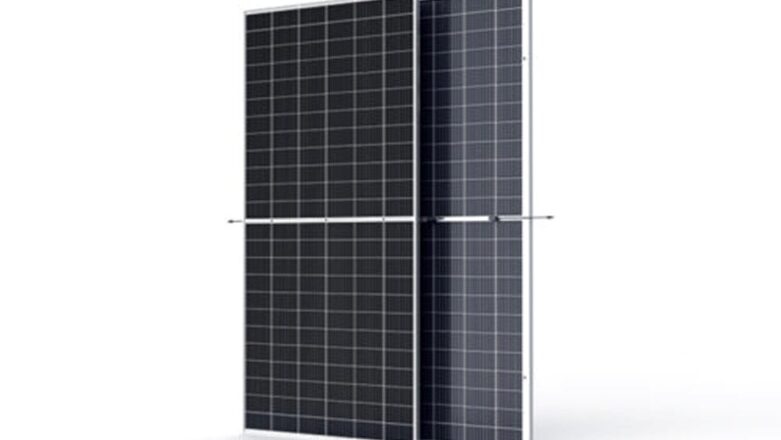

MONO PERC BI FACIAL MODULES (DCR)
(DCR / NON DCR 540-550W )
MONO PERC BI FACIAL MODULES (DCR)
This solar module features anti-reflective coated glass for enhanced power, high efficiency with a reflective white backsheet, and long-term reliability through V-Guard technology. With positive power tolerance and certified safety and quality standards, it ensures optimal performance and minimal mismatch losses.
Power your future with high-efficiency, reliable solar modules built for performance and certified for excellence.
MECHANICAL SPECIFICATIONS :
Dimensions (L x W x H): 2279 mm x 1135 mm x 35 mm
Weight: 28.5 Kgs
Junction Box: Split JB, IP67/68 Rated with 3 Bypass Diodes
Cable & Connectors: Solar cable 4.0 mm², 300 mm (MC4 Compatible) or Customized Length
Application Class: Class A (Safety Class II)
Superstrate: High Transmission, AR Coated Tempered Glass
Solar Cells: Mono PERC Crystalline - MBB (144 pcs Half Cut)
Cell Encapsulation: EVA (Ethylene Vinyl Acetate)
Back Sheet: Multilayered Back Sheet
Frame: Anodized Aluminium Frame
Mechanical Load Test: 5400 Pa (Snow Load), 2400 Pa (Wind Load)
Max. Series Fuse Rating: 25A
TEMPERATURE COEFFICIENTS (TC) AND PERMISSIBLE OPERATING CONDITIONS :
NOCT: 45°C ±2°C
Coefficient of Power (Pmax): -0.35%/°C
Coefficient of Voltage (Voc): -0.27%/°C
Coefficient of Current (Isc): 0.045%/°C
Temperature Range: -40°C to +85°C
WARRANTY AND CERTIFICATIONS :
Performance: Power output of 90% at the end of 10 Years and 80% at the end of 25 Years
Approvals and Certificates: A-LMM / IEC / BIS
(*Refer to Alpex Modules Warranty Document)
PACKAGING CONFIGURATION :
Container Size: 40' HC
Modules per Pallet: 31 Pieces
Modules per Container: 620 Pieces (20 Pallets)
