HYBRID INVERTERS
(DCR / NON DCR 540-550W )
HYBRID INVERTERS

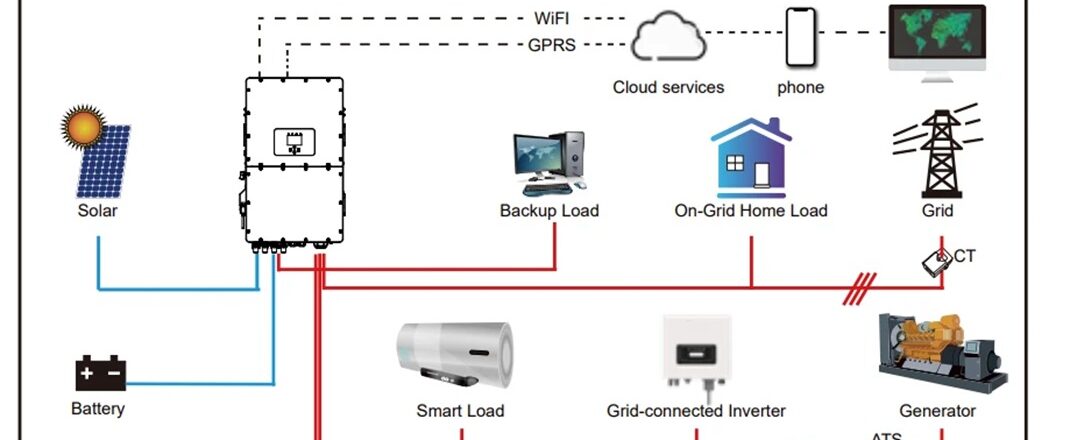

Our hybrid inverters represent the pinnacle of our energy conversion technology, seamlessly combining solar power management with battery storage capabilities. These advanced systems enable energy independence, backup power functionality, and intelligent power flow control in a single integrated solution.
Distinguished Capabilities :
Multiple Battery Compatibility: Works with various battery technologies including lithium-ion and lead-acid
Customizable Charging/Discharging: Program up to 6 different time periods for optimized energy usage
Generator Integration: Store energy from diesel generators for truly off-grid capabilities
Parallel Operation: Support for multiple units in parallel (up to 16 units) for scalable installations
AC Coupling: Retrofit capability for existing solar systems
UPS Functionality: Provides uninterrupted power supply during grid outages with millisecond switchover
Smart Monitoring: Intuitive user interfaces with colorful touch LCD displays and remote monitoring options
With maximum efficiencies reaching 97.6% and MPPT efficiencies exceeding 99%, Our hybrid inverters maximize both solar conversion and battery interaction. The robust IP65-rated design ensures reliable operation in various environments, while multiple communication interfaces (RS485/RS232/CAN) enable seamless integration with home energy management systems.
Key Features :
High Charging/Discharging Capabilities: The inverters support a maximum charging/discharging current of 190A. This high capacity ensures efficient energy storage and discharge, enhancing overall energy utilization.
Diesel Generator Compatibility: These inverters can store energy from diesel generators, offering an added layer of power reliability and ensuring that backup power sources are effectively utilized.
Parallel Operation: One of the standout features of this series is its ability to support up to 16 units in parallel for both on-grid and off-grid configurations. This parallel capability provides significant scalability, accommodating increasing energy demands without compromising performance.
Battery Versatility: The inverters are compatible with both lead-acid and lithium-ion batteries. Additionally, multiple batteries can be connected in parallel to extend energy storage capacity, catering to various storage needs.
Retrofit Capabilities: The ability to AC couple with existing solar systems makes these inverters ideal for retrofitting, allowing users to upgrade their energy systems without a complete overhaul.
User-friendly Interface: A colorful touch LCD screen provides an intuitive interface for monitoring and control, ensuring that users can easily access and manage system information.
Durable Design: Built to last, these inverters boast an IP65 protection rating, which guards against dust and water ingress, making them suitable for installation in various environmental conditions.
Technical Specifications :
- Battery Input Data:
- Battery Type: Lead-acid or Lithium-ion
- Battery Voltage Range: 40-60V
- Max. Charging/Discharging Current: 190A
- Self-adaptation BMS Support: Ensures compatibility with different battery management systems.
- PV String Input Data:
- Maximum PV Input Power: Up to 10,400W
- Maximum PV Input Voltage: Up to 500V
- MPPT Voltage Range: 150-425V
- AC Input/Output Data:
- Rated AC Power: From 3600W to 8000W, depending on the model
- Peak Power (off-grid): Double the rated power for 10 seconds
- Power Factor Adjustment: 0.8 leading to 0.8 lagging
- Efficiency: Max. 97.6%, Euro 96.5%, MPPT > 99%
- Protection & Compliance:
- Protection features include AC overcurrent, overvoltage, short circuit, and thermal protection
- Compliance with IEC 61727, IEC 62116, CEI 0-21, and more
- Environmental & Physical Features:
- Operating Temperature Range: -40°C to +60°C (derating above 45°C)
- Humidity: 0-100%
- Altitude: Up to 2000m
- Noise Level: Less than 30dB
- Ingress Protection: IP65 (dust and water-resistant)
- Cooling: Intelligent air cooling system
- Dimensions: 330×580×232 mm
- Weight: 24.9 kg
- Interface & Communication:
- Monitoring Modes: GPRS, WIFI, Bluetooth, 4G, LAN (optional)
- Communication Interfaces: RS485, RS232, and CAN
